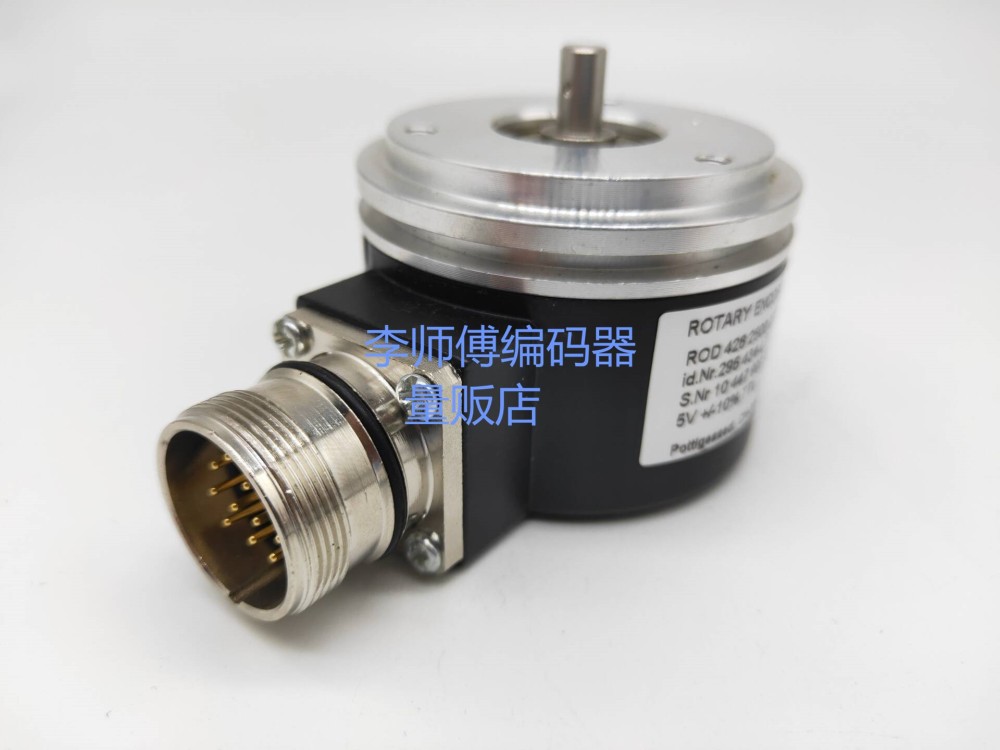

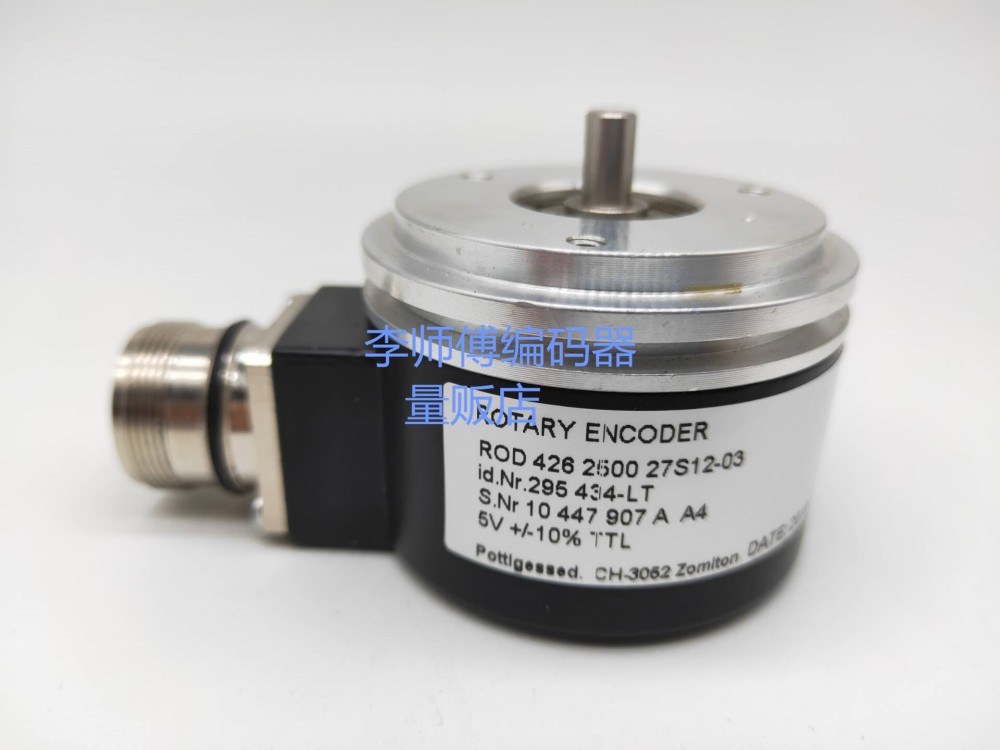

| ROD 42Six2500 27S12-03 |
| Id.Nr.295 434-LT |
| S.Nr 10 447 907 A A4 |
| 5V +/-10% TTL |
outputABZThe counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
axis/Aperture:04-05-06-08-10-12
Parameters: Pulse number 5 cpr-3600 CPR is optional,Working voltage DC5V-30V power supply, maximum mechanical speed 5000 rpm, response frequency: 0-300KHz, consumption current: <150MA.
Output:output circuitYesNPN(PNP)Open-circuit output type of collector"Voltage type, complementary type and long-line driving type（RS422)
Purpose:Servo motors, CNC machine tools, elevators, door machines, pipe benders, textile equipment
