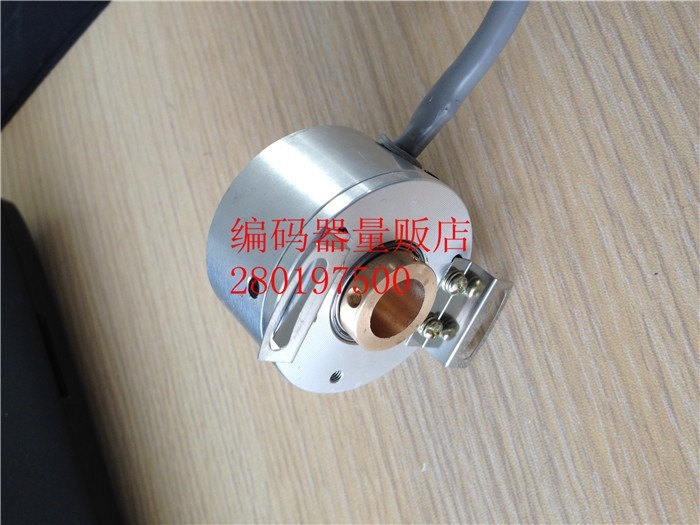

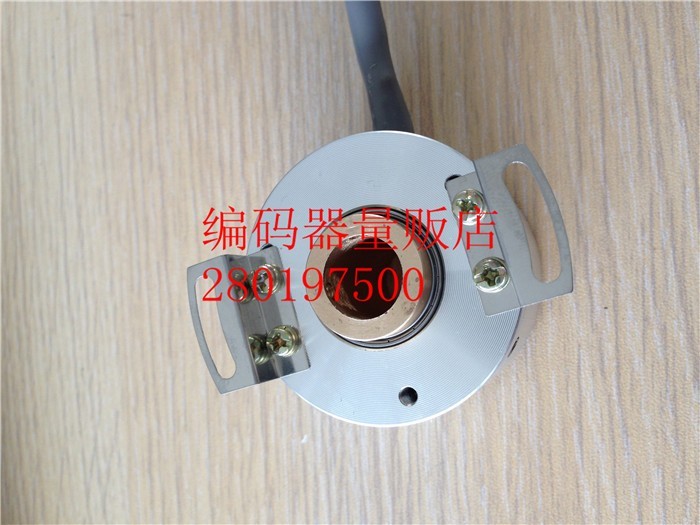

Name:Yongda elevator door machine encoderMEH-30-40PC7AEncoder MTL Complete Substitute, OutputABZ。 The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
Parameters: The number of pulses is optional.DC5VPower supply, maximum mechanical speed 8000 rpm, response frequency: 0-300KHz, consumption current: <150MA.
Size:Encoder body size: enclosure 44mm; shaft hole 12mm; fixed hole 2-M3 screw hole PCD50
Output:output circuitYesNPN(PNP)Open-circuit output type of collector"Voltage type, complementary type and long-line driving type（RS422)General type(Note: When the collector is not connected with pull-up resistance, there is no voltage output)
Purpose:Servo Motor, CNC Machine Tool, Elevator, Door Machine
