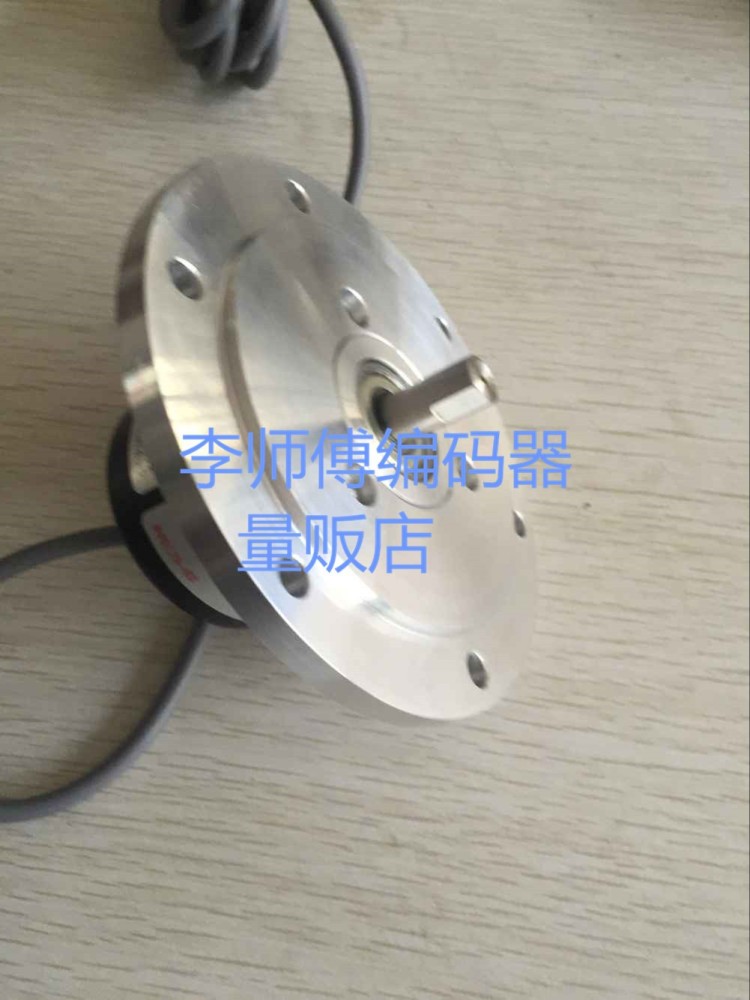

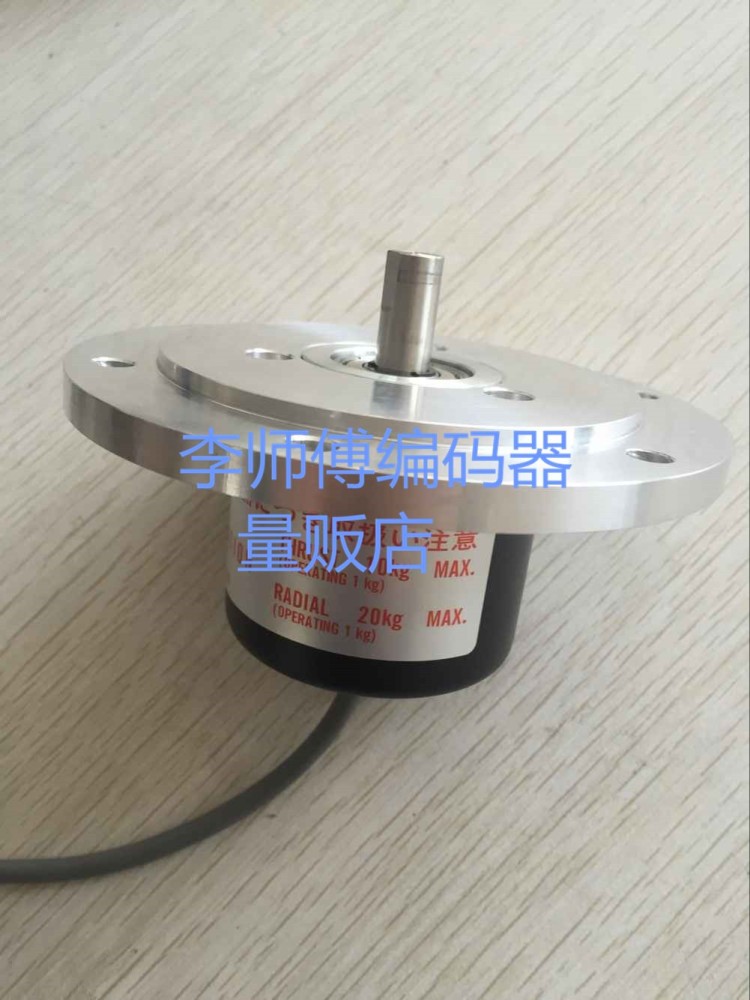

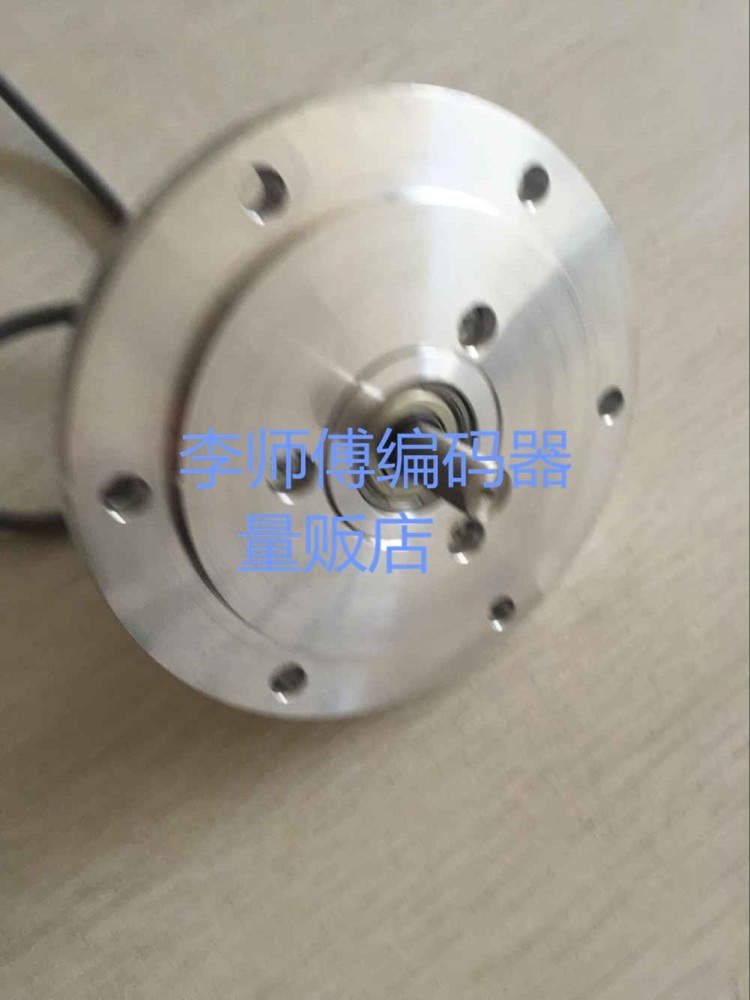

8.5000.GB52.1024 New Technical Encoder

8.5000.GB52.1024New  TechnologyEncoder

outputABZ。 The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.

Flange connection

Pulse:5-3600Voltage:DC10-30VProtection level:IP65/64Signal output: long-line drive, open collector, push-pull, short circuit protection;

Output:The output circuit hasNPN(PNP) collector open-circuit output typevoltage type,complementary type and long-line drive type（RS422)General type

Purpose:Servo motors, CNC machine tools, elevators, door machines, pipe benders, textile equipment
