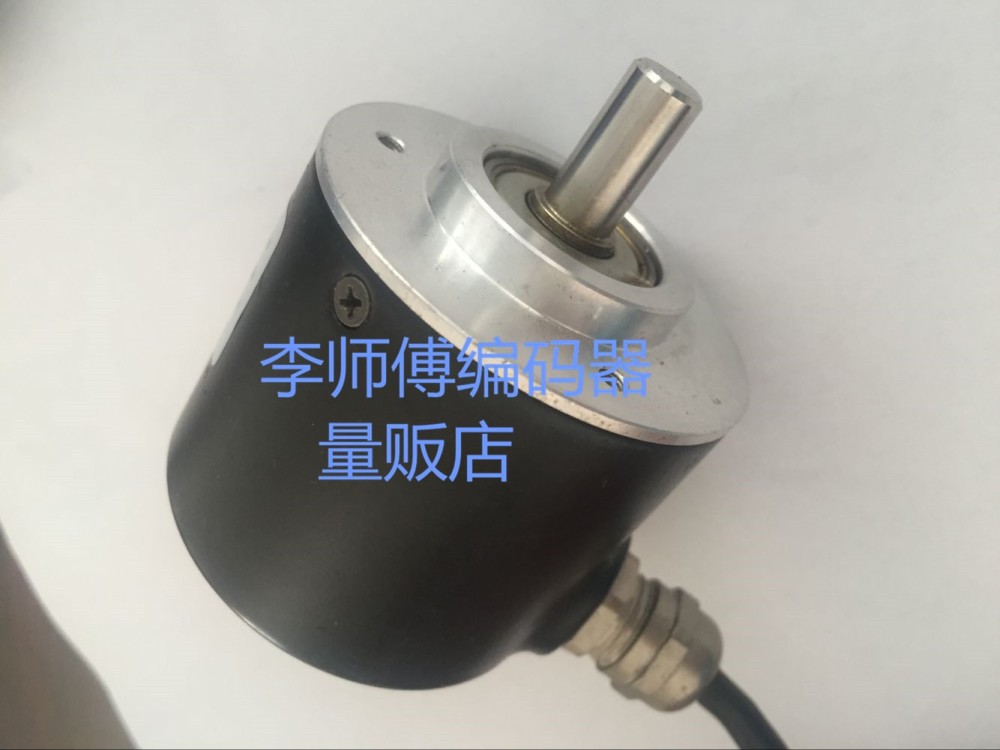

Encoder RSI 503New German Technical Encoder
PART NO 515973-09 |
SER NO 17430183 |
SUPPLY 5 VDC |
OUTPUT 360 PPR TTL |
outputABZ。 The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
Flange fixed, shaft diameter:5-6-8-10-12 mmOutside diameter:58mm
Pulse:5-3600Voltage:DC10-30VProtection level:IP65/64Signal output: long-line drive, open collector, push-pull, short circuit protection;
Output:The output circuit hasNPN(PNP) collector open-circuit output typevoltage type,complementary type and long-line drive type（RS422)General type
Purpose:Servo motors, CNC machine tools, elevators, door machines, pipe benders, textile equipment, wind power, etc.
