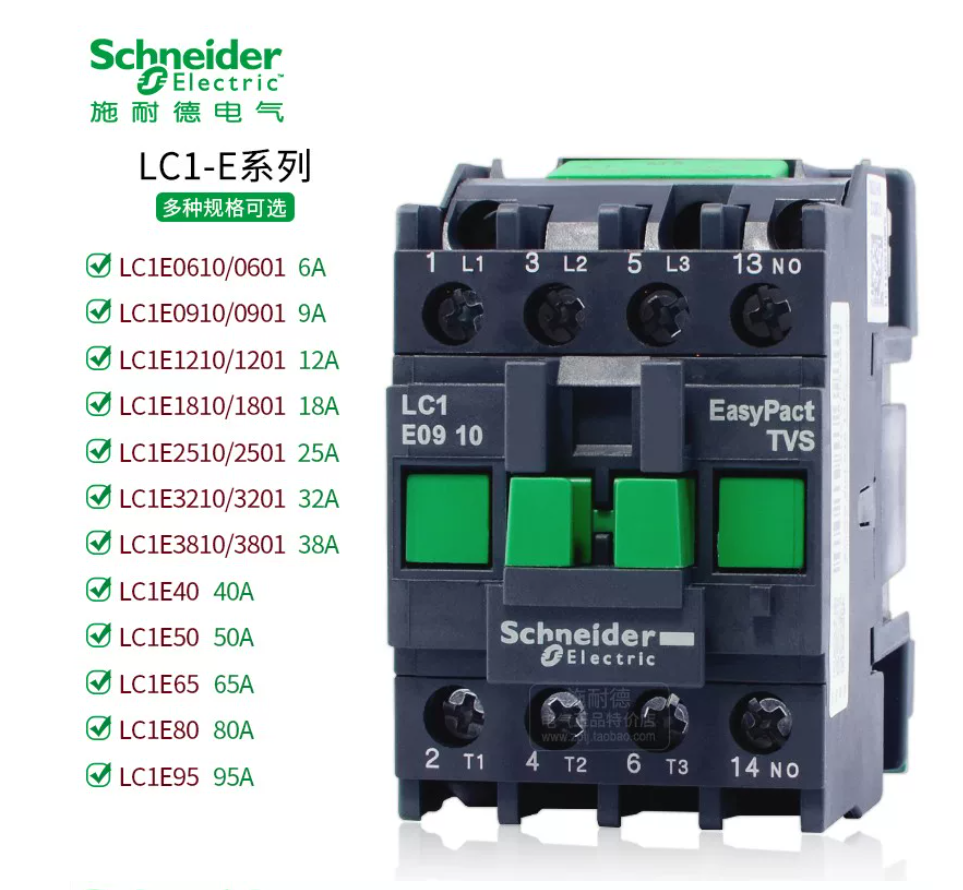

Professional-Grade Electrical Control Solution
The Schneider Electric LC1E series AC contactor represents the pinnacle and performance in industrial electrical control components. Engineered for precision and durability, these contactors are indispensable in applications requiring robust switching capabilities across a wide range of voltage systems.
Key Technical Specifications
- Models Available:
LC1E06, LC1E09, LC1E12, LC1E18, LC1E25, LC1E32, LC1Voltage Compatibility:**
AC24V, AC36V, AC110V, AC220V, AC380V
- Certification:
Schneider Electric genuine components with full manufacturer warranty
Core Advantages
1. Authentic Schneider Quality
Each contactor undergoes stringent quality control processes to comply with IEC/EN 60947-4-1 standards. Genuine Schneider components guarantee:
- Certified material integrity
- Precision manufacturing tolerances
- Third-party laboratory validation
The LC1E series features:
- Low power consumption coils (≤6 150% overvoltage withstand capacity
3
Designed for TeSys ecosystem integration:
- LR thermal relay compatibility
- Padlockable mechanical interlocks
- Support Class II insulation requirements
Thermal and Electrical Ratings
| Model | AC Utilization Category | AC-3 Current Rating (A) |
|---------|-------------------------|-------------------------|
| LC1E06 | | 9A (Iec) | | LC1E09 | | 12A (Iec) | | LC1E12 | | 18A (Iec) |
| LC1E18 | | 25A (Iec) |
| LC1E25 | | 38A (Iec) |
| LC1E32 | | 40A (Iec) | | LC1E38 | | 50A (Iec) |
Note: Actual utilization current shall never exceed rated I_AC3 for corresponding applications (motor control, lighting systems, capacitor banks).
Safety Compliance
- Pollution Degree: 2
- Overvoltage Category Ambient Temperature: -25°C to +60°C
- Altitude Rating: 2000m without derating
Conclusion
Selecting genuine Schneider LC1E contactors operational safety, compliance with international electromechanical standards, and minimized lifecycle maintenance costs. Each unit ships with Schneider’s Certificate of Conformity, providing traceability and validation of origin.
Critical Application Note: Installation must be performed by qualified personnel according to local electrical codes and Schneider technical documentation.
Schneider Electric and TeSys are registered trademarks of Schneider Electric Industries SAS. Purchase only from authorized distributors to guarantee authenticity.
