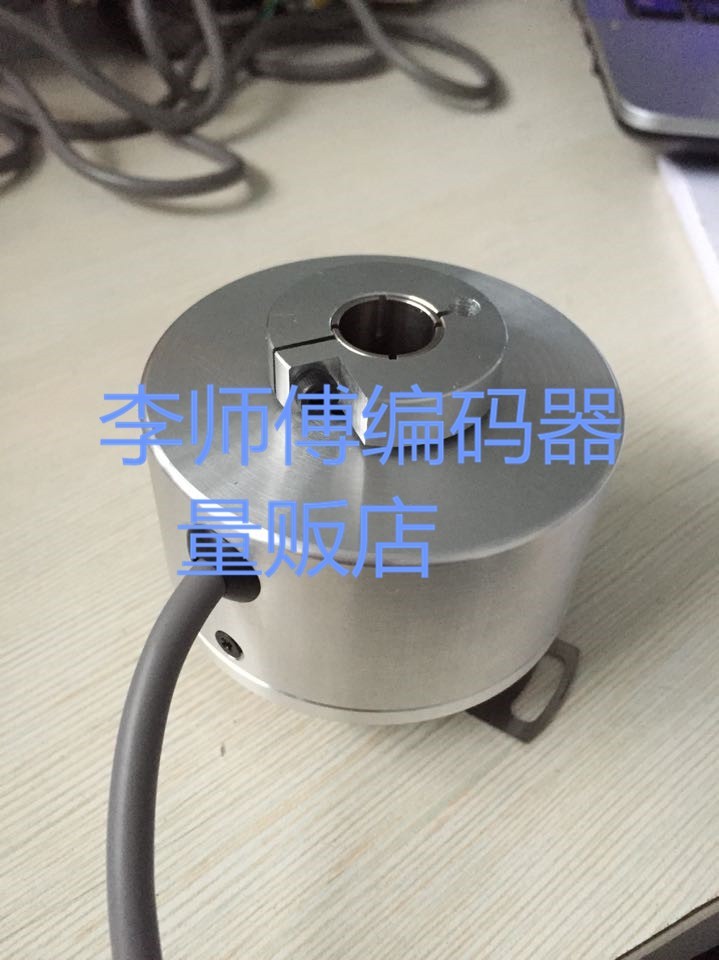

RI64/1024BW4H9IBA4X09 Encoder with New German Technology
outputABZ generates direction-recognizable counting pulses by rotating grating discs and optocouplers.
axis/aperture:10-12-14-Fifteen
Parameters: Number of pulses10cpr-5000cprOptional,working voltageDC5V-30Vpower supply,Maximum mechanical speed15000 rpm, response frequency: 0-300 KHz, consumption current: <150MA.
Output:output circuitYesNPN(PNP)Open-circuit output type of collector\ Voltage type, complementary type and long-line driving type（RS422)
Purpose:Servo motors, CNC machine tools, elevators, door machines, pipe benders, textile equipment,Ships, Explorationship
