SZGLK6015G2 Series Incremental Photoelectric Encoders: Precision Motion Sensing Solutions

Overview

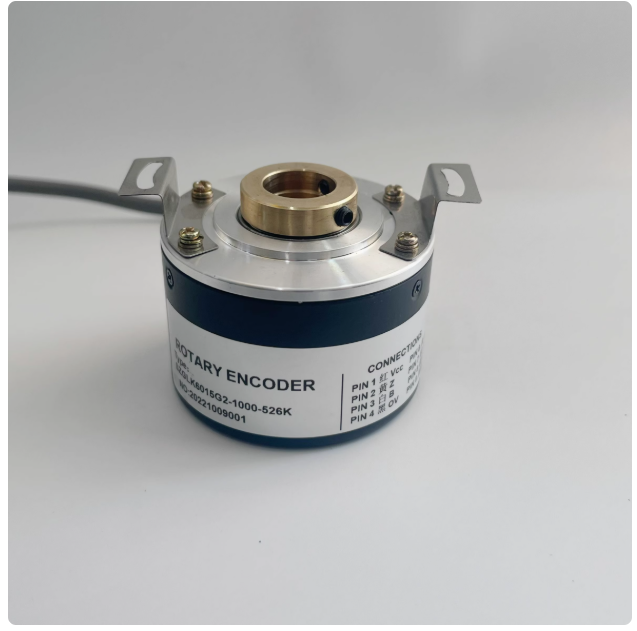

The SZGLK6015G2 Series represents a line of high-performance incremental photoelectric encoders engineered for precise angular position and speed measurement in demanding industrial applications. Featuring a through-hole design (ø15mm shaft), these encoders provide exceptional mechanical compatibility and ease of integration into various motion control systems. Available in multiple resolutions and output configurations, this series offers tailored solutions for diverse accuracy requirements.

Key Product Variants & Specifications

| Model | Resolution (PPR) | Output Type | Key Feature | | :------------------------- | :--------------- | :---------- | :------------------------------ | | SZGLK6015G2-1000-526K | 1000 | Line Driver | High noise immunity, differential signal | | SZGLK6015G2-2000-526PNP| 2000 | PNP Open Collector | Positive logic output, compatible with PLCs | | SZGLK6015G2-5000-526PNP| 5000 | PNP Open Collector | Ultra-high resolution for precision applications | | SZGLK6015G2-5000-526NPN| 5000 | NPN Open Collector | Negative logic output, versatile interfacing |

Technical Advantages

1. High Resolution & Accuracy
   With options ranging from 1000 to 5000 pulses per revolution (PPR), these encoders deliver precise feedback for speed control, positioning, and synchronization tasks. The 5000 PPR variants are ideal for applications requiring micron-level motion control.

2. **Robust Through-H direct mounting onto motor shafts or driven equipment, eliminating coupling alignment issues and enhancing mechanical stability in high-vibration environments.

3. Output Flexibility

• Line Driver (K-Type): Provides differential signals (A, /A, B, /B, Z, /Z) for long-distance transmission with enhanced noise resistance.
• PNP/NPN Open Collector: Offers sink/source compatibility with industrial controllers (PLCs, drives) and simplifies wiring integration.

1. Industrial Durability
   Encased in an IP54-rated housing, these units resist dust ingress and water splashes, ensuring reliable operation in harsh manufacturing environments (-10°C +70°C).

Target Applications

• CNC machine tool spindles
• Automated conveyor systems
• Robotics joint feedback
• Packaging machinery position control
• Precision servo motor systems

Why Choose SZGLK6015G2 Series?

"Engineered for uncompromising reliability, the SZGLK6015G2 encoders combine optical precision with industrial ruggedness. Their modular output options and resolution scalability make them a future-proof investment for upgrading motion control accuracy without system redesign."

Order Today
Specify your required model (Resolution + Output Type) for immediate delivery. Contact our technical team for integration support or custom configurations.

Elevate your system's precision — with SZGLK6015G2 encoders.
