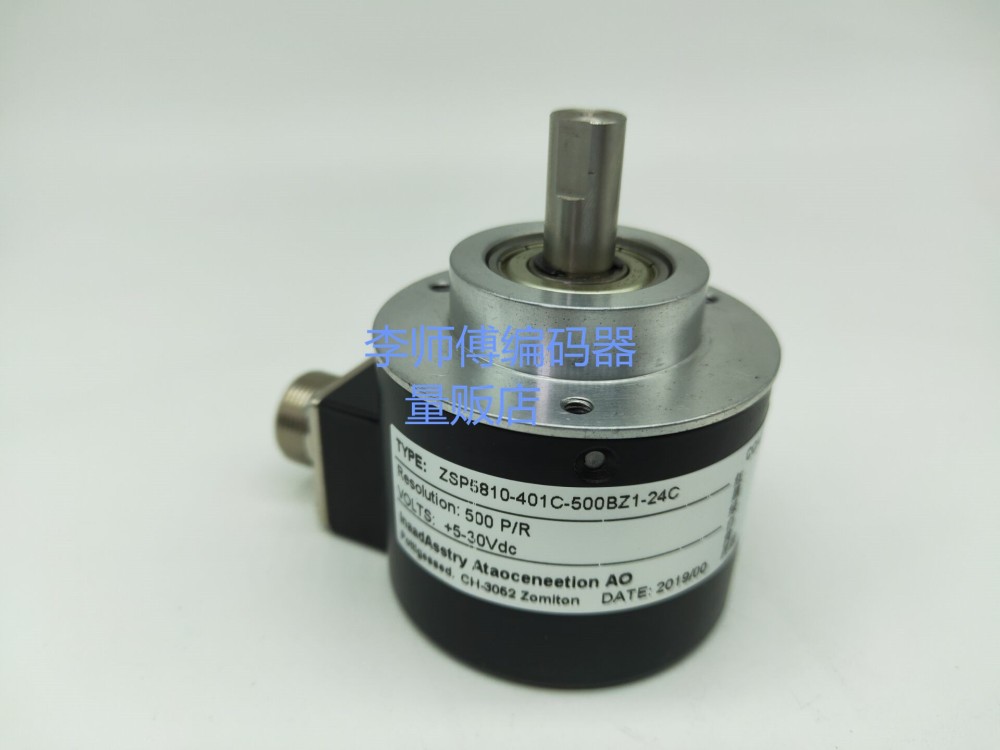

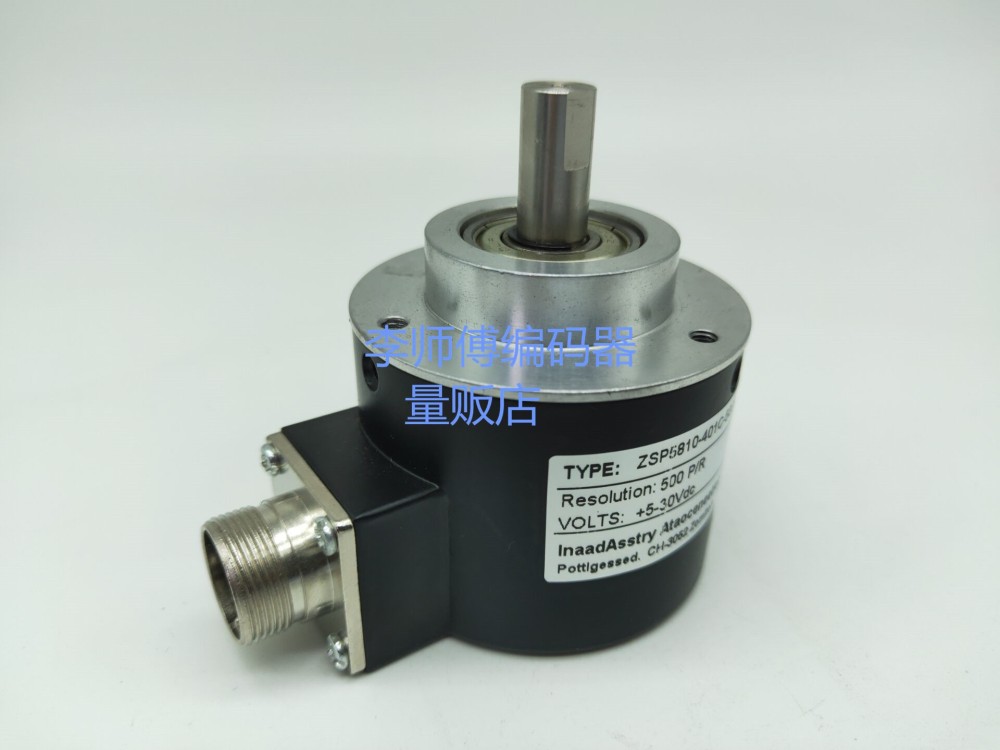

ZSP5810-401C-500BZ1-24CNew Li Encoder
outputABZThe counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
axis/Aperture:08-10-12-14-15-19-20-25-30 mm
Parameters: Pulse number 2 cpr-3600 CPR is optional,Working voltage DC5V-30V power supply, maximum mechanical speed 8000 rpm, response frequency: 0-300KHz, consumption current: <150MA.
Output:output circuitYesNPN(PNP)Open-circuit output type of collector"Voltage type, complementary type and long-line driving type（RS422)
Purpose:Servo motors, CNC machine tools, elevators, door machines, pipe benders, textile equipment, elevators
